Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Place of Origin : Zhejiang, China

Brand Name : YOMIN, YOMIN

Model Number : YEM 011AG

Display Type : Analog Only

Phase : Single Phase

Measuring Energy Range : 5(100)A

Accuracy Class : class 1, 1.0

Output Voltage : 120,230, 120 V, 230 V

Operating Temperature : -20℃~ 70℃

Dimensions : 88*75*68mm, 88*75*68mm, Custom

Installation : 35mm standard DIN rail

Standard : IEC62053-21

Certification : CE RoHS

Frequency : 50-60HZ

Starting Current : 0.02A

Color : White

Packaging Details : Conventional export packing

Price : $4.94/Pieces 1-9 Pieces

Contact Now

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Model YEM011AG single phase electronic DIN rail active energy meter is a kind of new style single

phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale

integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely

accords with relevant technical requirements of class 1 single phase active energy meter stipulated in

international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy

consumption from single phase AC electricity net, it can display total energy consumption by step

motor type impulse register. It has following features: good reliability, small volume, light weight,

specious nice appearance, convenient installation, etc.

Technical parameters

Model

Accuracy

Reference

Voltage(V)

Current

specifications(A)

Starting

current (A)

Insulation

performance

YEM011AG

Class 1

120

230

5(30)

10(50)

20(100)

0.02

0.04

0.08

AC voltage 4kv for 1 minute,

1.2/50us waveform impulse voltage 6kv

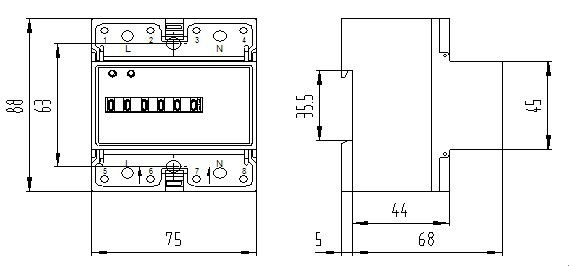

Dimension

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

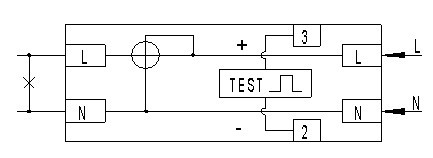

Wiring Diagram

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Terminals

Note

L

Phase line (Inlet from bottom, outlet from top)

N

Neutral line (Inlet from bottom, outlet from top)

2 and 3

Port of pulse output passive

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy MeterSingle Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy MeterSingle Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy MeterSingle Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy MeterSingle Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

Single Phase Two Wire Din Rail Active Register Display Electronic Kwh Energy Meter

single phase 1P

No Mudbus

single phase 2P

Mudbus

single phase 4P

Mudbus

three phase

Mudbus
